Single Row Cylindrical Roller Bearing With Cage Non Locating Bearing NU2312E-TVP2

Removable Inner Ring, 2 Ribs on Outer Ring, 0 Ribs on Inner Ring, High Capacity, Polyamide Cage, Normal Clearance

About this bearing:

• Cylindrical roller bearing with polyamide cage and removable inner ring suitable for high radial loads
• CN (normal) radial clearance for applications where thermal expansion is not a factor
• Single row roller bearing for high radial loads with low friction
• Removable inner ring in open bearing allows for lubrication in place
• Metric unit measurements for industry consistency

Cylindrical roller bearing with a polyamide cage and removable inner ring is suitable for applications that support high radial loads. This roller bearing has a CN (normal) radial clearance for applications and operating conditions with normal shaft and housing tolerances where thermal expansion is not a factor. This is a single row roller bearing that supports high radial loads with low friction. A removable inner ring in the open bearing allows application of lubrication. This roller bearing is measured in metric units for industry cross-matching and parts consistency.

Cylindrical roller bearings are used in applications where high radial loads are present such as in conveyer belts, traction motors, railway car axle boxes, and oilfield mud pumps, among others.

Roller or rolling bearings use rolling elements to maintain the separation between moving parts to reduce rotational friction and support radial and axial loads. They are usually composed of two rings, rolling bodies (such as bearings or cylinders), and a cage to house the parts. These elements can be one of the following types: ball, cylindrical, spherical, barrel, needle, spindle, or tapered. Rolling bearings can be open, shielded, or sealed. Sealed bearings are lubricated with oil or grease in the bearing factory, while open and shielded bearings are meant to be lubricated in place, with periodic reapplication of lubrication, based on use. The shield protects the working parts of the bearing from environmental debris that may be introduced and could reduce the ball bearing speed and lifespan. Rolling bearings are used in a range of applications from agricultural machinery to conveying equipment, robotics, dental equipment, elevators, rolling mills, ship rudder shafts, and aggregate crushers, among others.

We manufacture a variety of bearings that meet International Organization for Standardization (ISO) and Deutsches Institut für Normung (DIN) standards for quality assurance.

If any need, feel free to contact us.

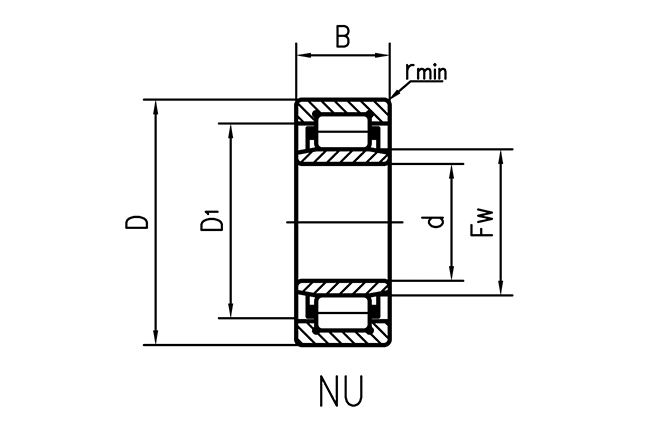

Single Row Cylindrical Roller Bearing With Cage Non Locating Bearing NU Series Specifications:

MOUETTE MACHINERY, professional bearings and mechanical parts supplier in China, is located in Changzhou City, Jiangsu Province, China within two and half hour drive to Shanghai. Our factory, equipped with over 400 advanced machines for manufacturing, inspecting, test processes and two assembly lines, automatic cleaning and packaging, covers 68000 square meters, with more than 350 workers, and is ISO9001: 2000 and TS16949: 2002 accredited.

MOUETTE produces and exports high quality wide variety of Needle Roller Bearings, Cylindrical Roller Bearings, Cam Followers, One-way Clutch Bearings, Stainless Steel Pillow Blocks, Needle Rollers and Steel Balls. Our premium quality bearings and mechanical parts are widely used in the industries of Automotive transmission, Power steering gear, Electric power steering, motorcycle, Engineering machinery, printing machinery, Agricultural machinery, Textile machinery, Industrial robot, packing machinery, forklift machines, construction machinery, offshore applications, rotary platforms, and so on. We also customize varieties of non-standard needle rollers, pins, shaft sleeves, Washers and special precision parts etc. to clients’ tech-specific requirements.

Adopting “market-oriented” as the guiding principle, MOUETTE gathers a team of foreign trade professionals, builds up its own production bases, and forms a large network of supply sources. This network consists of many factories capable of providing a wide range of reliable products and shortened lead time.

Relying on its good credibility, high quality, the most competitive price and excellent services, our bearings and mechanical parts have been well exported to more than 20 countries and regions, like Europe, America, Brazil, Japan, Korea, Middle East, Hong Kong and so on.

Warmly welcome to MOUETTE and do business together under our high quality and best service!
