    Super Precision Spherical Roller Bearing Tapered Bore Lubricated Brass Caged Cylindrical Needle

    Ask Lasest Price
    Brand Name : MOUETTE
    Model Number : NN3060 K/W33, NN3064 K/W33, NN 3068 K/SPW33, NN3072 K/W33, NN3076 K/W33, NN3080 K/W33, NN3084 K/W33M, NN3088 K/W33, NN3096 K/W33, NN30/530 NN30/600 K/W33K/W33,
    Certification : ISO/TS 16949:2009, ISO 9001:2008
    Price : USD20 per Piece (Inquired for details)
    Payment Terms : L/C, T/T, D/A, Western Union, Paypal
    Supply Ability : 50,000 Pieces per Month.
    Delivery Time : 3-50 working days.(Huge Quantity Stocks Available))
    • Product Details
    • Company Profile

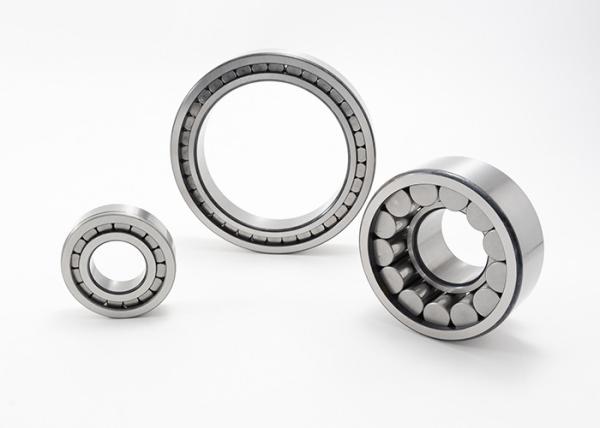

    Super Precision Spherical Roller Bearing Tapered Bore Lubricated Brass Caged Cylindrical Needle

    Super Precision Cylindrical Roller Bearing With Tapered Bore And Lubrication Feature

    Super-precision double row cylindrical roller bearing with tapered bore and lubrication feature
    non-locating bearing, double row, with tapered bore, taper 1:12, separable, with cage

    Super-precision double row cylindrical roller bearings in the NN 30 series provide a unique balance between load carrying capacity, rigidity and speed. Having three flanges on the inner ring and no flanges on the outer ring, the bearings can accommodate axial displacement in both directions. The separable design simplifies mounting and dismounting, particularly when load conditions require both rings to have an interference fit. The tapered bore enables accurate adjustment of clearance or preload during mounting.

    • Very high radial load carrying capacity
    • High rigidity and high running accuracy
    • Minimize noise, vibration and heat generation
    • Accommodate axial displacement in both directions
    • Lubrication feature

    Properties

    Bearing part Complete bearing
    Bore type Tapered 1:12
    Design NN Design
    Cage "M" - Brass Cage
    Number of flanges, inner ring 3
    Number of flanges, outer ring 0
    Number of rolling element rows 2 (Double-row design)
    Radial internal clearance C1 or Customized
    Relubrication feature Bearing with "W33" have annular groove and lubrication holes

    Super-precision double row cylindrical roller bearing with tapered bore and lubrication feature specifications:

    Part Number Dimension Basic Load Rating (KN) Limiting Speed Mass
    (mm) (rpm) (kg)
    d D B rsmin Fw Ew Cr Cor Grease Oil
    NN3060 300 460 118 4 - 418 1290 2460 1200 1400 70.7
    NN3060/W33 300 460 118 4 - 418 1290 2460 1200 1400 70.7
    NN3060 K 300 460 118 4 - 418 1290 2460 1200 1400 70.7
    NN3060 K/W33 300 460 118 4 - 418 1290 2460 1200 1400 70.7
    NN3160 300 500 160 5 - 448 1760 3150 900 1200 125

    NN4964 320 440 118 3 - 411 1260 3050 1100 1400 50.2
    NN4964 K 320 440 118 3 - 411 1260 3050 1100 1400 52
    NN3064 320 480 121 4 - 438 1350 2670 1100 1400 76.6
    NN3064/W33 320 480 121 4 - 438 1350 2670 1100 1400 76.3
    NN3064 K 320 480 121 4 - 438 1350 2670 1100 1400 73.2
    NN3064 K/W33 320 480 121 4 - 438 1350 2670 1100 1400 72.8

    NN3968 340 460 90 3 - 431 905 2020 1000 1300 42.9
    NN4968 K 340 460 118 3 - 431 1350 3400 1100 1400 53.8
    NN4968 340 460 118 3 - 431 1350 3400 1100 1400 52.1
    NN3068 K 340 520 133 5 - 473 1560 3020 900 1050 101
    NN3068 K/W33 340 520 133 5 - 473 1560 3020 900 1050 99.5
    NN3068 340 520 133 5 - 473 1560 3020 900 1050 104
    NN3068/W33 340 520 133 5 - 473 1560 3020 900 1050 103

    NN3972 360 480 90 3 - 453 930 2130 900 1200 44.9
    NN3072 360 540 134 5 - 493 1630 3240 900 1100 106
    NN3072/W33 360 540 134 5 - 493 1630 3240 900 1100 105
    NN3072 K 360 540 134 5 - 493 1630 3240 900 1100 106
    NN3072 K/W33 360 540 134 5 - 493 1630 3240 900 1100 105
    NN4072 360 540 180 5 - 493 2530 5450 800 1000 132

    NN4976 380 520 140 4 - 490 1880 4600 900 1200 81.3
    NN3076 K 380 560 135 5 - 513 1590 3240 850 1050 110
    NN3076 K/W33 380 560 135 5 - 513 1590 3240 850 1050 109
    NN3076 380 560 135 5 - 513 1590 3240 850 1050 114
    NN3076/W33 380 560 135 5 - 513 1590 3240 850 1050 113
    NN3176 380 620 194 5 - 559 2620 4950 800 1000 224

    NN3980 K 400 540 108 4 - 504 1240 2400 830 1050 71.3
    NN3080 K 400 600 148 5 - 549 1980 3660 800 1000 143
    NN3080 K/W33 400 600 148 5 - 549 1980 3660 800 1000 142.2
    NN3080 400 600 148 5 - 549 1980 3660 800 1000 147
    NN3080/W33 400 600 148 5 - 549 1980 3660 800 1000 146.2

    NN3984 420 560 106 4 - 522 1280 2900 810 1020 71.2
    NN4984 420 560 140 4 - 522 2000 5150 800 1000 87.9
    NN3084 420 620 150 5 - 569 2130 4450 750 900 154
    NN3084/W33 420 620 150 5 - 569 2130 4450 750 900 153.2
    NN3084 K 420 620 150 5 - 569 2130 4450 750 900 152
    NN3084 K/W33 420 620 150 5 - 569 2130 4450 750 900 151.2
    NN4084 420 620 200 5 - 569 3150 7100 720 850 189

    NN3088 440 650 157 6 - 597 2360 4900 700 850 177
    NN3088/W33 440 650 157 6 - 597 2360 4900 700 850 176.2
    NN3088 K 440 650 157 6 - 597 2360 4900 700 850 174
    NN3088 K/W33 440 650 157 6 - 597 2360 4900 700 850 173.2
    NN3188 440 720 226 6 -   3500 6800 630 750 357

    NN3992 460 620 118 4 - 581 1610 3700 750 900 94.5
    NN3092 460 680 163 6 - 624 2470 5070 650 750 204
    NN3092/W33 460 680 163 6 - 624 2470 5070 650 750 203
    NN3092 K 460 680 163 6 - 624 2470 5070 650 750 201
    NN3092 K/W33 460 680 163 6 - 624 2470 5070 650 750 200

    NN4996 480 650 170 5 -   2300 6150 650 750 150
    NN3096 480 700 165 6 - 644 2600 5550 600 700 211
    NN3096/W33 480 700 165 6 - 644 2600 5550 600 700 210
    NN3096 K 480 700 165 6 - 644 2600 5550 600 700 206
    NN3096 K/W33 480 700 165 6 - 644 2600 5550 600 700 205
    NN3196 480 790 248 7.5 - 710 4050 8100 520 620 447

    NN30/500 500 720 167 6 - 664 2580 5600 550 650 210
    NN30/500/W33 500 720 167 6 - 664 2580 5600 550 650 209
    NN30/500 K 500 720 167 6 - 664 2580 5600 550 650 214
    NN30/500 K/W33 500 720 167 6 - 664 2580 5600 550 650 213

    NN39/530 530 710 136 5 -   2040 4900 570 670 149
    NN30/530 530 780 185 6 - 715 3200 6900 500 600 263
    NN30/530/W33 530 780 185 6 - 715 3200 6900 500 600 262
    NN30/530 K 530 780 185 6 - 715 3200 6900 500 600 259
    NN30/530 K/W33 530 780 185 6 - 715 3200 6900 500 600 258

    NN39/560 560 750 140 5 -   2370 4860 520 620 188
    NN30/560 560 780 180 6 - 725 2400 6400 480 580 341
    NN30/560/W33 560 820 195 6 - 755 2460 6560 450 550 340
    NN30/560 K 560 820 195 6 - 755 2460 6560 450 550 337
    NN30/560 K/W33 560 820 195 6 - 755 2460 6560 450 550 336
    NN40/560 560 820 258 6 - 755 5900 14000 400 500 472

    NN49/600 K 600 800 200 5 - 758 3450 7180 450 550 257
    NN30/600 600 870 200 6 - 805 4460 9850 400 500 388
    NN30/600/W33 600 870 200 6 - 805 4460 9850 400 500 387
    NN30/600 K 600 870 200 6 - 805 4460 9850 400 500 384
    NN30/600 K/W33 600 870 200 6 - 805 4460 9850 400 500 383

    NN48/630 K/W33 630 780 150 4 - 738 2270 6900 420 500 161
    NN49/630 630 850 218 6 - 793 4200 11400 400 480 328
    NN30/630 K 630 920 212 7.5 - 850 4350 10600 350 430 438
    NN30/630 630 920 212 7.5 - 850 4350 10600 350 430 460

    NN49/670 670 900 230 6 - 838 4150 11500 350 430 419
    NN30/670 K 670 980 280 7.5 - 900 4620 9360 300 400 597

    NN30/710/W33 710 1030 236 7.5 - 951 5500 12500 280 380 595

    NN30/750/W33 750 1090 250 7.5 - 1013 6800 15000 260 330 700

    NN30/800 K/W33 800 1150 258 7.5 - 1065 7500 17500 220 300 750
    NN30/800/W33 800 1150 258 7.5 - 1065 7500 17500 220 300 785

    NN30/850/W33 850 1220 272 7.5 - 1130 7800 18000 200 280 935
    NN30/850 K/W33 850 1220 272 7.5 - 1130 7800 18000 200 280 930

    NN30/900/W33 900 1280 280 7.5 - 1185 7920 19000 190 260 1050

    NN30/950/W33 950 1360 300 7.5 - 1255 8750 22500 180 250 1300
    NN30/950 K/W33 950 1360 300 7.5 - 1255 8750 22500 180 250 1285

    NN49/1000 1000 1320 315 7.5 - 1238 8500 26000 200 260 1210
    NN30/1000/W33 1000 1420 308 7.5 - 1316 10000 24600 175 240 1385

    NN30/1060/W33 1060 1500 325 9.5 - 1391 10500 37500 170 235 1650
    NN30/106 K/W33 1060 1500 325 9.5 - 1391 10500 37500 170 235 1630

    NN49/1320/W33 1320 1720 400 7.5 - 1620 13200 42500 170 210 3040
    NN49/1320 K/W33 1320 1720 400 7.5 - 1620 13200 42500 170 210 2980
