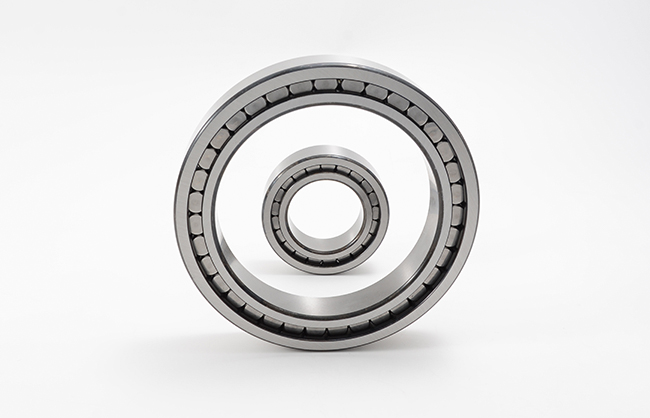

Single Row Full Complement Cylindrical Roller Bearings

Single row full complement cylindrical roller bearings, NCF design

Single row full complement cylindrical roller bearings are designed to accommodate very high radial loads in combination with moderate speeds. The bearings incorporate a maximum number of rollers as they are not equipped with a cage. Having two integral flanges on the inner ring and one flange on the outer ring, NCF design bearings can accommodate axial displacement in one direction. A retaining ring on the outer ring holds the bearing together. The retaining ring should not be loaded axially during operation.

Features:

• Very high radial load carrying capacity
• High radial stiffness
• Long service life
• Locate the shaft axially in one direction

Single Row Full Complement Cylindrical Roller Bearings are commonly used in applications where high radial loads are present, such as in industrial gearboxes, construction equipment, and mining machinery. They are also suitable for applications with low speeds or oscillating motions.

One advantage of full complement bearings is their ability to withstand shock and impact loads due to their increased load capacity. However, they may have limitations in terms of operating speeds due to the increased friction between the rollers.

It's important to note that the absence of a cage in full complement bearings can result in reduced guiding and alignment of the rollers, which may affect the overall stability of the bearing.

Single Row Full Complement Cylindrical Roller Bearings offer higher load-carrying capacity compared to standard cylindrical roller bearings, making them suitable for heavy-duty applications where radial loads are predominant.

Single Row Full Complement Cylindrical Roller Bearings NCF Series Details:

MOUETTE MACHINERY, professional bearings and mechanical parts supplier in China, is located in Changzhou City, Jiangsu Province, China within two and half hour drive to Shanghai. Our factory, equipped with over 400 advanced machines for manufacturing, inspecting, test processes and two assembly lines, automatic cleaning and packaging, covers 68000 square meters, with more than 350 workers, and is ISO9001: 2000 and TS16949: 2002 accredited.

MOUETTE produces and exports high quality wide variety of Needle Roller Bearings, Cylindrical Roller Bearings, Cam Followers, One-way Clutch Bearings, Stainless Steel Pillow Blocks, Needle Rollers and Steel Balls. Our premium quality bearings and mechanical parts are widely used in the industries of Automotive transmission, Power steering gear, Electric power steering, motorcycle, Engineering machinery, printing machinery, Agricultural machinery, Textile machinery, Industrial robot, packing machinery, forklift machines, construction machinery, offshore applications, rotary platforms, and so on. We also customize varieties of non-standard needle rollers, pins, shaft sleeves, Washers and special precision parts etc. to clients’ tech-specific requirements.

Adopting “market-oriented” as the guiding principle, MOUETTE gathers a team of foreign trade professionals, builds up its own production bases, and forms a large network of supply sources. This network consists of many factories capable of providing a wide range of reliable products and shortened lead time.

Relying on its good credibility, high quality, the most competitive price and excellent services, our bearings and mechanical parts have been well exported to more than 20 countries and regions, like Europe, America, Brazil, Japan, Korea, Middle East, Hong Kong and so on.

Warmly welcome to MOUETTE and do business together under our high quality and best service!
