    Thermoplastic Bearing Unit Stainless Steel Insert Ball Bearing 3 Bolt Flange SS UCFBPL203

    Ask Lasest Price
    Brand Name : MOUETTE
    Model Number : SS-UCFBPL201, SS-UCFBPL202, SS-UCFBPL204, SS-UCFBPL207
    Certification : ISO/TS 16949:2009, ISO 9001:2008
    Price : USD2 per Piece (Inquired)
    Payment Terms : L/C, T/T, D/A, Western Union, Paypal
    Supply Ability : 500,000 Pieces per Month.
    Delivery Time : 3-45 working days.(Huge Quantity Stocks Available))
    • Product Details
    • Company Profile

    Thermoplastic Bearing Unit Stainless Steel Insert Ball Bearing 3 Bolt Flange SS UCFBPL203

    Thermoplastic Bearing Unit Stainless Steel Insert Ball Bearing 3 Bolt Flange SS UCFBPL203


    Thermoplastic Bearing Units are corrosion resistant units for various applications and are needed for the environments of clean operating. Thermoplastic bearing units provide the desirable thermal, electrical and mechanical properties that offer the standard products. The exclusive features of the thermoplastic bearing are solid base, bolt grommets, stainless steel wide inner ring and others. Thermoplastic Housings are dimensionally interchangeable with conventional cast-iron housings, are maintenance free with excellent mechanical strength, stiffness and dimensional stability that will never rust or corrode.
    Applications And Industry:
    Agriculture, Home Appliances, Meat, Poultry And Seafood Proceesing And Packaging Plants, Beverage, Brewing And Bottling Plants, Food Industry, Automation, Agriculture, Machines, Machine Construction, Conveyor Technology, Chemical Proceesing Machines.
    SS-UCFBPL Thermoplastic Bearing Unit Features:
    Insert bearing:
    • Set Screw Locking
    • Wide Inner Ring
    • Material: Stainless Steel AISI 440C, Stainless Steel 420

    Housing:

    • Three-Bolt Flange Bracket
    • Material: PBT Thermoplastic

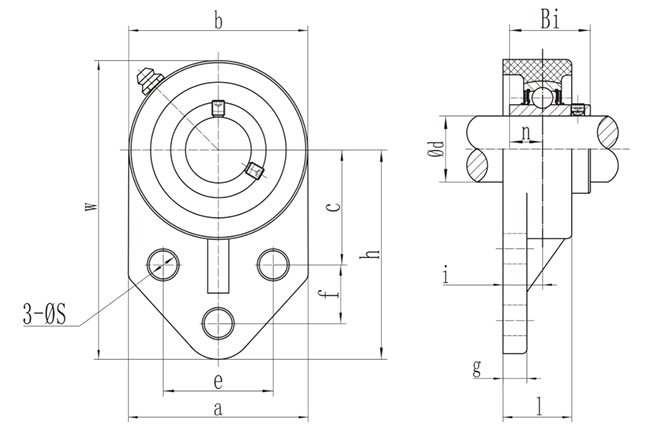

    Thermoplastic Bearing Unit Insert Ball Bearing 3 Bolt Flange SS UCFBPL2 Series Specifications:


    Bearing Unit Part No.

    Bore DiaDimension(mm)

    Housing

    Weight (kg)

    Bolt Size

    dae

    h

    ws

    f

    c

    b


    l

    g

    i

    n

    Bi

    inmm
    SS-UCFBPL201

    1/ 2

    126238.176.5108.51122.242.96226.51215.412.7310.1M10
    SS-UCFBPL2029/16 5/8156238.176.5108.51122.242.96226.51215.412.7310.1M10
    SS-UCFBPL20311/16176238.176.5108.51122.242.96226.51215.412.7310.1M10
    SS-UCFBPL2043/ 4206238.176.5108.51122.242.96226.51215.412.7310.1M10
    SS-UCFBPL20513/16 7/8 15/16 12563.541.385.7120.61128.6466933.5122114.334.10.12M10
    SS-UCFBPL206

    1-1/16

    1-1/8

    1-3/16

    1-1/4

    307547.698.51401131.852.48231.5141915.938.10.16M10
    SS-UCFBPL207

    1-1/4

    1-5/16

    1-3/8

    1-7/16

    358950.81101581331.860.39436.51721.417.542.90.18M12
    SS-UCFBPL208

    1-1/2

    1-9/16

    4078501141641341.360.310035.71821.41949.20.23M12

    Mode of load

    Load ratings(N)

    Type204205206207208


    7200


    9100


    12200


    12900


    13600


    9200


    11100


    11800


    11900


    12100


    2600


    2800


    2900


    3100


    3300
