Brand Name : | MOUETTE |
Model Number : | SUCX07, SUCX08, SUCX10, SUCX11, SUCX12, SUCX14 |
Certification : | ISO/TS 16949:2009, ISO 9001:2008 |
Price : | USD1 per Piece (Inquired) |
Payment Terms : | L/C, T/T, D/A, Western Union, Paypal |
Supply Ability : | 500,000 Pieces per Month. |
Delivery Time : | 3-45 working days.(Huge Quantity Stocks Available)) |

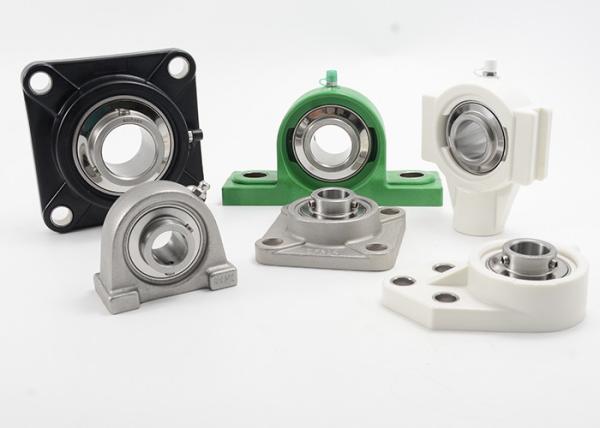

Stainless Steel Insert Bearing Corrosion Resistant Pillow Blocks SUCX07 SUCX10
MOUETTE produces Insert Ball Bearings made from AISI 440C, 420, 304 stainless steel for raceways and balls. They feature a deep ball groove construction and a polymer cage. They are specifically designed to provide superior corrosion resistance.
Applications:
Stainless Steel Insert Bearing Corrosion Resistant Pillow Blocks SUCX00 Series Specifications:
Bearing Unit Part No. | Bore Dia | Dimension(mm) | Basic Dynamic Load Rating | Basic Static Load Rating | Net Weight (kg) | |||||||||
d | D | Bi | Be | r | N | M | G | ds | T | |||||
in | mm | |||||||||||||
SUCX05 SUCX05-14 SUCX05-15 SUCX05-16 | 7/8 15/16 1 | 25 | 62 | 38.1 | 19.0 | 1.5 | 15.9 | 22.2 | 5.0 | M6×0.75 | 5 | 15.81 | 8.64 | 0.35 0.38 0.36 0.34 |
SUCX06 SUCX06-17 SUCX06-18 SUCX06-19 SUCX06-20 | 1-1/16 1-1/8 1-3/16 1-1/4 | 30 | 72 | 42.9 | 20.0 | 2 | 17.5 | 25.4 | 6 | M8×1 | 5.7 | 20.83 | 11.68 | 0.54 0.59 0.57 0.54 0.52 |
SUCX07 SUCX07-20 SUCX07-21 SUCX07-22 SUCX07-23 | 1-1/4 1-5/16 1-3/8 1-7/16 | 35 | 80 | 49.2 | 21.0 | 2 | 19.0 | 30.2 | 8.0 | M8×1 | 6.2 | 23.55 | 13.6 | 0.70 0.77 0.74 0.70 0.67 |
SUCX08 SUCX08-24 SUCX08-25 | 1-1/2 1-9/16 | 40 | 85 | 49.2 | 22.0 | 2 | 19.0 | 30.2 | 8.0 | M8×1 | 6.4 | 26.27 | 15.52 | 0.88 0.92 0.88 |
SUCX09 SUCX09-26 SUCX09-27 SUCX09-28 | 1-5/8 1-11/16 1-3/4 | 45 | 90 | 51.6 | 24 | 2 | 19.0 | 32.6 | 10 | M10×1.25 | 6.5 | 28.05 | 17.68 | 1.03 1.13 1.09 1.05 |
SUCX10 SUCX10-29 SUCX10-30 SUCX10-31 SUCX10-32 | 1-13/16 1-7/8 1-15/16 2 | 50 | 100 | 55.6 | 25 | 2.5 | 22.2 | 33.4 | 10 | M10×1.25 | 7 | 35.19 | 22.24 | 1.28 1.41 1.36 1.31 1.26 |
SUCX11 SUCX11-32 SUCX11-33 SUCX11-34 SUCX11-35 | 2 2-1/16 2-1/8 2-3/16 | 55 | 110 | 65.1 | 27 | 2.5 | 25.4 | 39.7 | 10 | M10×1.25 | 7.6 | 42.42 | 27.36 | 1.73 1.90 1.84 1.77 1.70 |
SUCX12 SUCX12-36 SUCX12-37 SUCX12-38 | 2-1/4 2-5/16 2-3/8 | 60 | 120 | 65.1 | 28 | 2.5 | 25.4 | 39.7 | 10 | M10×1.25 | 8.9 | 46.50 | 30.4 | 1.87 2.00 1.93 1.85 |
SUCX12-39 SUCX13 SUCX13-40 SUCX13-41 | 2-7/16 2-1/2 2-9/16 | 65 | 125 | 74.6 | 30 | 2.5 | 30.2 | 44.4 | 12 | M12×1.5 | 8.9 | 50.07 | 33.44 | 1.78 2.23 2.32 2.23 |
SUCX14 SUCX14-42 SUCX14-43 SUCX14-44 | 2-5/8 2-11/16 2-3/4 | 70 | 130 | 77.8 | 32 | 2.5 | 33.3 | 44.5 | 12 | M12×1.5 | 8.9 | 53.55 | 37.68 | 2.39 2.61 2.50 2.40 |
SUCX15 SUCX15-45 SUCX15-46 SUCX15-47 SUCX15-48 | 2-13/16 2-7/8 2-15/16 3 | 75 | 140 | 82.6 | 33.0 | 3 | 33.3 | 49.3 | 14 | M12×1.5 | 9.6 | 58.57 | 40.4 | 3.33 3.59 3.47 3.36 3.23 |
SUCX16 SUCX16-50 | 3-1/8 | 80 | 150 | 85.7 | 35 | 3 | 34.1 | 51.6 | 14 | M12×1.5 | 10 | 67.49 | 48.8 | 4.11 4.16 |
SUCX17 SUCX17-52 | 3-1/4 | 85 | 160 | 96 | 37 | 3 | 39.7 | 56.3 | 15 | M12×1.5 | 11 | 77.78 | 54.4 | 4.77 5.01 |
![]() |
