Bearing Inner Ring For Shell Type Needle Roller Bearings IRT4520 IRT5550 IRT6050

Ask Lasest Price
Brand Name :	MOUETTE
Model Number :	IRT4520 IRT5550 IRT6050 - Inner Rings for Shell Type Needle Roller Bearings
Certification :	ISO/TS 16949:2009, ISO 9001:2008
Price :	USD1 per Piece
Payment Terms :	L/C, T/T, D/A, Western Union, Paypal
Supply Ability :	500,000 Pieces per Month.
Delivery Time :	3-45 working days.(Huge Quantity Stocks Available))

Add to Cart

Product Details
Company Profile

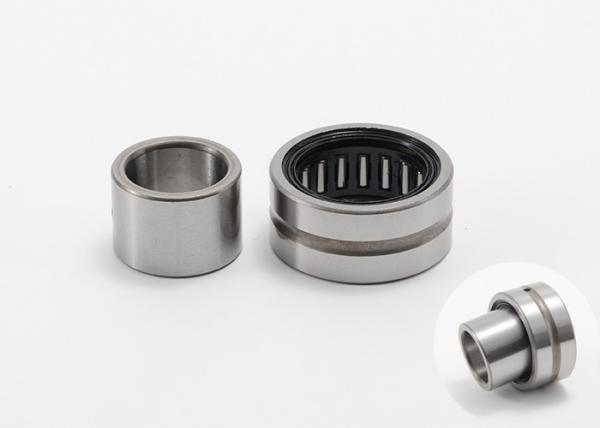

Bearing Inner Ring For Shell Type Needle Roller Bearings IRT4520 IRT5550 IRT6050

Inner Rings for Shell Type Needle Roller Bearings IRT4520 IRT5550 IRT6050

Inner Rings for Shell-Type Needle Roller Bearings

These rings are designed to provide a durable surface for shell-type needle roller bearings with non-machined raceways. Metric type IRT Series inner rings are available with shaft diameters from 7 to 60 millimeters, and inch-type IRB Series shaft diameters range from 5/16 to 2½ inches.

We offer both standard and customized inner rings, in High-Alloy Bearing Quality Steel 100Cr6, and Stainless steel 440C.

Metric Inner Rings for Shell Type Needle Roller Bearings IRT Series Specifications:

Shaft Diameter	Bearing Designation	Mass Approx	Boundary Dimensions
Shaft Diameter		Mass Approx	d	F	B
mm		g	mm
42	IRT424720		42	47	20
	IRT424730		42	47	30
	IRT424830		42	48	30
45	IRT4512	36	45	50	12.5
	IRT4515	44.5	45	50	15.5
	IRT455020		45	50	20
	IRT4520	59	45	50	20.5
	IRT455025		45	50	25
	IRT4525	73	45	50	25.5
	IRT455030		45	50	30
	IRT4530	87.5	45	50	30.5
	IRT455035		45	50	35
	IRT4540	116	45	50	40.5
	IRT4545	131	45	50	45.5
	IRT455222		45	52	22
	IRT455240		45	52	40
	IRT455522		45	55	22
	IRT455540		45	55	40
48	IRT485540		48	55	40
50	IRT505520		50	55	20
	IRT5020-1	65	50	55	20.5
	IRT505525		50	55	25
	IRT5025-1	81	50	55	25.5
	IRT505530		50	55	30
	IRT5030-1	96.5	50	55	30.5
	IRT505535		50	55	35
	IRT505540		50	55	40
	IRT5040-1	128	50	55	40.5
	IRT505545		50	55	45
	IRT5045-1	144	50	55	45.5
	IRT505550		50	55	50
	IRT5050-1	160	50	55	50.5
	IRT505822		50	58	22
	IRT505830		50	58	30
	IRT505840		50	58	40
	IRT505845		50	58	45
	IRT506025		50	60	25
	IRT5025	169	50	60	25.5
	IRT506028		50	60	28
	IRT506030		50	60	30

50	IRT5030	205	50	60	30.5
	IRT506040		50	60	40
	IRT5040	270	50	60	40.5
	IRT506045		50	60	45
	IRT506050		50	60	50
54	IRT546345		54	63	45
55	IRT556025		55	60	25
	IRT556030		55	60	30
	IRT556035		55	60	35
	IRT556238		55	62	38
	IRT556325		55	63	25
	IRT556345		55	63	45
	IRT556525		55	65	25
	IRT556528		55	65	28
	IRT556530		55	65	30
	IRT556545		55	65	45
	IRT556550		55	65	50
	IRT556560		55	65	60
60	IRT606825		60	68	25
	IRT606834		60	68	34
	IRT606835		60	68	35
	IRT606845		60	68	45
	IRT607025		60	70	25
	IRT607028		60	70	28
	IRT607030		60	70	30
	IRT607040		60	70	40
	IRT607045		60	70	45
	IRT607050		60	70	50
	IRT607060		60	70	60
65	IRT657225		65	72	25
	IRT657235		65	72	35
	IRT657325		65	73	25
	IRT657335		65	73	35
	IRT657528		65	75	28
	IRT657530		65	75	30
	IRT657535		75	75	35
	IRT657560		75	75	60
70	IRT708025		70	80	25
70	IRT708030		70	80	30

70	IRT708035	70	80	35
	IRT708040	70	80	40
	IRT708050	70	80	50
	IRT708054	70	80	54
	IRT708060	70	80	60
75	IRT758345	75	83	45
	IRT758525	75	85	25
	IRT758530	75	85	30
	IRT758535	75	85	35
	IRT758554	75	85	54
	IRT759032	75	90	32
80	IRT809025	80	90	25
	IRT809030	80	90	30
	IRT809035	80	90	35
	IRT809040	80	90	40
	IRT809054	80	90	54
85	IRT859526	85	95	26
	IRT859536	85	95	36
	IRT859545	85	95	45
	IRT8510035	85	100	35
90	IRT9010026	90	100	26

Inch Inner Rings for Shell Type Needle Roller Bearings IRB Series Specifications:

Shaft

Diameter

Bearing

Designation

Mass

Approx

Boundary Dimensions

9.525	IRB68	9.525	14.288	12.95
12.7	IRB812	12.7	17.462	19.3
12.7	IRB812-1	12.7	19.05	19.3
15.875	IRB1012	15.875	22.225	19.3
20	IRB121616	20	25.4	25.65
22.225	IRB1416	22.225	28.575	25.65
28.575	IRB1820	28.575	34.925	32
31.75	IRB2020	31.75	38.1	32
