    Sealed Stud Type Cam Follower Crowned Eccentric Cam Roller Black Oxide CCFE 1/2 S CCFE 1 1/2 S

    Ask Lasest Price
    Brand Name : MOUETTE
    Model Number : CCFE 1/2 S CCFE 1 1/2 S - Crowned Stud Type Cam Follower
    Certification : ISO/TS 16949:2009, ISO 9001:2008
    Price : USD1 per Piece
    Payment Terms : L/C, T/T, D/A, Western Union, Paypal
    Supply Ability : 500,000 Pieces per Month.
    Delivery Time : 3-45 working days.(Huge Quantity Stocks Available))
    • Product Details
    • Company Profile

    Sealed Stud Type Cam Follower Crowned Eccentric Cam Roller Black Oxide CCFE 1/2 S CCFE 1 1/2 S

    Crowned Cam Followers Inch Stud Eccentric Sealed Black Oxide CCFE 1/2 S CCFE 1 1/2 S


    Designed to maximize preferred motion with rigid, consistent construction. Cam followers feature a simple and low friction profile to transform rotary motion into linear motion with low lubrication requirements.


    MOUETTE carries a large inventory of Crowned/Cylindrical cam followers for your bearings needs. Stud type cam follower options include eccentric, standard, heavy, single row, and more.
    Also known as track followers, cam followers are available in either crowned or Cylindrical designs. Both types feature a round outer roller and built-in threaded stud that projects out from one side. Crowned cam followers effectively reduce corner loading in rotary cams and turntables. Their outer roller is slightly curved in a crown shape to keep the follower centered on misaligned or non-flat surfaces. Cylindrical cam followers are ideal on cylindrical surfaces. Their outer roller does not have a curved or crowned radius. Also known as cylindrical cam followers, it experiences lower stresses in perfectly aligned applications.

    Stainless steel cam followers intended harsh environments that require increased corrosion resistance. Excellent choice for outdoor use or for applications such as food production facilities that require frequent wash-down and cleaning. Mouette offers more interchange tables, such as mcgill cam follower bearings, iko cam follower, skf cam follower, ina cam follower, rbc cam follower, smith cam followers, and nsk cam follower.

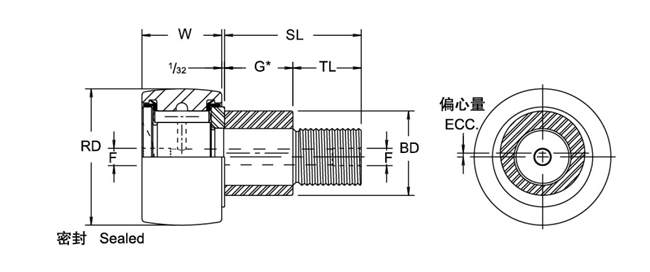

    Crowned Cam Followers Inch Stud Eccentric Black Oxide Finish Specifications:

    UnsealedSealedRoller Dia. (RD)Roller Width (W)Eccentric Bush Length (G)Eccentric Bush Dia. (BD)Stud Length (SL)Min. Thread Lenght (TL)Fine THR'DS.
    CCFE 1/2 NCCFE 1/2 N S.500.344.250.2501/21/410-32
    CCFE 1/2CCFE 1/2 S.500.375.375.2505/81/410-32
    CCFE 9/16CCFE 9/16 S.5625.375.375.2505/81/410-32
    CCFE 5/8CCFE 5/8 S.625.4375.437.3753/45/161/4-28
    CCFE 11/16CCFE 11/16 S.6875.4375.437.3753/45/161/4-28
    CCFE 3/4CCFE 3/4 S.750.500.500.5007/83/83/8-24
    CCFE 7/8CCFE 7/8 S.875.500.500.5007/83/83/8-24
    CCFE 1CCFE 1 S1.000.625.500.62511/27/16-20
    CCFE 1 1/8CCFE 1 1/8 S1.125.625.500.62511/27/16-20
    CCFE 1 1/4CCFE 1 1/4 S1.250.750.625.6871 1/45/81/2-20
    CCFE 1 3/8CCFE 1 3/8 S1.375.750.625.6871 1/45/81/2-20
    CCFE 1 1/2CCFE 1 1/2 S1.500.875.750.8751 1/23/45/8-18
    CCFE 1 5/8CCFE 1 5/8 S1.625.875.750.8751 1/23/45/8-18
    CCFE 1 3/4CCFE 1 3/4 S1.7501.000.8751.0001 3/47/83/4-16
    CCFE 1 7/8CCFE 1 7/8 S1.8751.000.8751.0001 3/47/83/4-16
    CCFE 2CCFE 2 S2.0001.2501.0001.187217/8-14
    CCFE 2 1/4CCFE 2 1/4 S2.2501.2501.0001.187217/8-14
    CCFE 2 1/2CCFE 2 1/2 S2.5001.5001.1251.3752 1/41 1/81-14
    CCFE 2 3/4CCFE 2 3/4 S2.7501.5001.1251.3752 1/41 1/81-14
    CCFE 3CCFE 3 S3.0001.7501.2501.7502 1/21 1/41 1/4-12
    CCFE 3 1/4CCFE 3 1/4 S3.2501.7501.2501.7502 1/21 1/41 1/4-12
    CCFE 3 1/2CCFE 3 1/2 S3.5002.0001.3751.8122 3/41 3/81 3/8-12
    CCFE 4CCFE 4 S4.0002.2502.0002.0003 1/21 1/21 1/2-12

    UnsealedSealedECC.LUB. FITTING SIZE (F)Recom. Clamping Torque (LBS.)Basic Load Rating
    Max. Static Capacity (LBS.)Max. Dyn. Capacity (LBS.)
    CCFE 1/2 NCCFE 1/2 N S.0101/815720620
    CCFE 1/2CCFE 1/2 S.0101/815790680
    CCFE 9/16CCFE 9/16 S.0101/815790680
    CCFE 5/8CCFE 5/8 S.0151/8351215955
    CCFE 11/16CCFE 11/16 S.0151/8351215955
    CCFE 3/4CCFE 3/4 S.0153/169520651660
    CCFE 7/8CCFE 7/8 S.0153/169520651660
    CCFE 1CCFE 1 S.0303/1625030602225
    CCFE 1 1/8CCFE 1 1/8 S.0303/1625030602225
    CCFE 1 1/4CCFE 1 1/4 S.0303/1635042503930
    CCFE 1 3/8CCFE 1 3/8 S.0303/1635042503930
    CCFE 1 1/2CCFE 1 1/2 S.0303/1665056404840
    CCFE 1 5/8CCFE 1 5/8 S.0303/1665056404840
    CCFE 1 3/4CCFE 1 3/4 S.0303/16125079206385
    CCFE 1 7/8CCFE 1 7/8 S.0303/16125079206385
    CCFE 2CCFE 2 S.0303/161500105708090
    CCFE 2 1/4CCFE 2 1/4 S.0303/161500105708090
    CCFE 2 1/2CCFE 2 1/2 S.0303/1622501645011720
    CCFE 2 3/4CCFE 2 3/4 S.0303/1622501645011720
    CCFE 3CCFE 3 S.0601/434502491015720
    CCFE 3 1/4CCFE 3 1/4 S.0601/434502491015720
    CCFE 3 1/2CCFE 3 1/2 S.0601/442003162522800
    CCFE 4CCFE 4 S.0601/450004477029985
