    RCB FCB Drawn Cup Needle Roller Bearing Plastic Cage Roller Clutch Bearing Inch Measurements

    Ask Lasest Price
    Brand Name : MOUETTE
    Model Number : RCB-061014, RCB-081214, RCB-101416, RCB-11616, RCB-162117, FCBL-8-K, FCB-8, RCB-061014-FS, FCB-10, FCB-12, RCB-081214-FS, RCB-101416-FS, FCB-16, RCB-121616-FS, FCB-20, FCB-25, RCB-162117-FS, FCB-30
    Certification : ISO/TS 16949:2009, ISO 9001:2008
    Price : USD0.5 per Piece
    Payment Terms : L/C, T/T, D/A, Western Union, Paypal
    Supply Ability : 500,000 Pieces per Month.
    Delivery Time : 3-45 working days.(Huge Quantity Stocks Available))
    • Product Details
    • Company Profile

    RCB FCB Drawn Cup Needle Roller Bearing Plastic Cage Roller Clutch Bearing Inch Measurements

    Drawn Cup Needle Roller Bearing Roller Clutch Open Plastic Cage Inch Measurements


    This drawn cup roller clutch and bearing assembly with a plastic clutch cage transmits torque between the shaft and housing in one direction and allows free overrun in the opposite direction. It has a roller bearing on each end of the clutch to support radial loads, and a drawn cup outer steel shell that provides a small cross-section for use in restricted spaces. The outer shell serves as a raceway for the clutch and bearing rollers, and the clutch has an acetyl resin polymer cage with integral leaf springs for operation at temperatures up to 200 degrees F (90 degrees C). The rollers are made of through-hardened, high-carbon chromium steel for heat tolerance and durability, and the assembly comes packed with lithium soap grease. This drawn cup roller clutch and bearing assembly is used in various applications, such as athletic equipment, paper towel dispensers, office machines, and appliances, among others.

    About this item

    • Roller clutch and bearing assembly for transmitting torque in one direction while allowing free overrun in the opposite direction
    • Roller bearings on each end of the clutch for carrying radial loads
    • Drawn steel outer shell (cup) has a small cross-section for use in restricted spaces
    • Molded acetyl resin polymer clutch cage with an integral leaf spring for each roller
    • Through-hardened, high-carbon chromium steel rollers for heat tolerance and durability under heavy loads

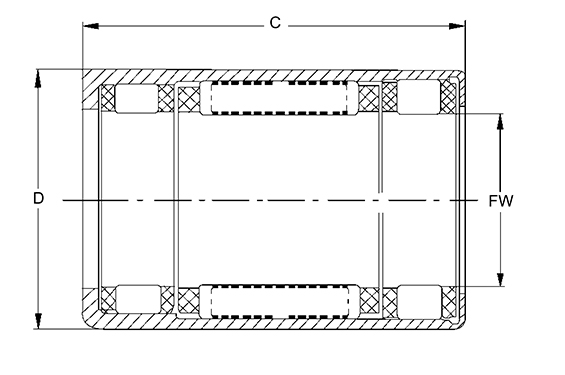

    Drawn Cup Needle Roller Bearing Roller Clutch Open Plastic Cage Inch Measurements Specifications:

    Bearing Designation

    Mass

    Boundary Dimensions

    Basic Load

    Ratig(N)

    Limiting

    Speed

    Trans-mission

    torque

    FwDC
    ginchmminchmminchmmDyn.Sta.rpmN.m
    FCBL-8-K0.3180.47120.866225322870029.0
    FCB-8100.3180.55140.787205413050035.8
    RCB-061014-FS*RCB-061014123/89.525/815.880.87522.228482530045.4
    FCB-10150.39100.63160.787206282370050.4
    FCB-12180.47120.71181.0242688219300118
    RCB-081214-FS*RCB-081214161/212.73/419.050.87522.2210201870073.6
    RCB-101416-FS*RCB-10141621.35/815.887/822.221.00025.40114014700143
    FCB-16220.63160.87221.0242695114000182
    RCB-121616-FS*RCB-1161626.53/419.05125.401.00025.4127011300196
    FCB-20270.79201.02261.02426118010700274
    FCB-25440.99251.26321.1813015808670605
    RCB-162117-FS*RCB-16211744.8125.4015/1633.341.0632722408670412
    FCB-30511.18301.46371.1813016207300845
