Brand Name : | MOUETTE |
Model Number : | FWD331608CRB, FWD331808CRB, FWD332008CRB, FWD332211CRB |
Certification : | ISO/TS 16949:2009, ISO 9001:2008 |
Price : | USD8 per Piece |
Payment Terms : | L/C, T/T, D/A, Western Union, Paypal |
Supply Ability : | 500,000 Pieces per Month. |
Delivery Time : | 3-45 working days.(Huge Quantity Stocks Available)) |

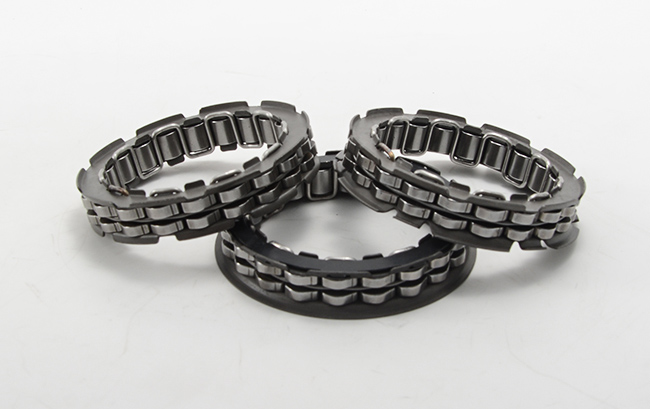

Sprag Freewheel One Way Clutch Bearing Backstop Motorcycle Starter Clutch
We supply various one way clutch bearing. This overrunning one way clutch widely for beach motorbike. one-way bearing is free to rotate in one direction, while in the other direction to lock a bearing. Also called a one-way clutch bearing, but depending on the industry, the role of different named. The metal in the one-way bearing, comprising a number of rollers, roller or ball, and the rolling seat (hole) shape rolling it in only one direction and in the other direction generates a large resistance (The so-called "one-way").
Main applications: textile machinery; printing machinery; automobile industry; appliances; detectors.

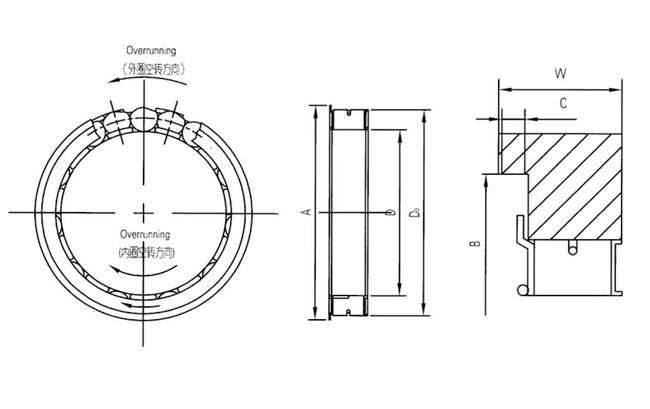

Sprag Freewheel One Way Clutch Bearing Backstop Motorcycle Starter Clutch Specifications:
Clutch Type | Dimensions | Torque | Weight | |||||
Inner race | Outer race | Wmin | A | B | C | |||
D +0.008/ -0.005 | D0 ±0.013 | W | Tkn | |||||
[mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [Kgf-m] | [g] | |
FWD331608CRB | 39.627 | 56.294 | 13.0 | 60 | 62 | 1.0 | 27 | 73 |
FWD331808CRB | 45.665 | 62.332 | 13.3 | 65 | 68 | 1.0 | 35 | 82 |
FWD332008CRB | 51.71 | 68.377 | 13.3 | 71 | 74 | 1.0 | 45 | 91 |
FWD332211CRB | 57.76 | 74.427 | 16.3 | 76 | 79 | 1.0 | 78 | 134 |
Note:
1) Opposite overrunning direction should be ordered separately.
![]() |
