All Stainless Steel Bearing Units Insert Ball Bearing With Socket Set Screws SUCF210

Special feature of this series:

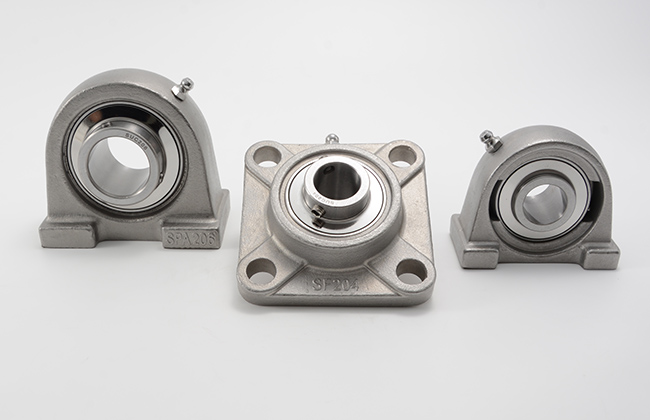

Flanged housing units of the series SSUCF2 (stainless steel) consist of the housing bearing made of stainless steel F2 (4-hole) and the already installed bearing insert SSUC2. The design as a 4-hole flange bearing allows installation in a variety of applications and is suitable for very high radial loads. The housing is made of stainless steel and is therefore hygienic and corrosion-resistant. The bearing insert made of stainless steel is also corrosion-resistant and has an extended inner ring with grub screws for mounting the inner ring on a shaft. Static misalignments can be compensated up to an angle of 2°.

Key Features:

• Bearing Insert Type: Ball
• Consisting of a stainless steel ball bearing insert SSUC2 and a stainless steel housing SSF2
• Mounting Type: 4-hole flange bearing design allows installation in a variety of applications and is suitable for very high radial loads
• Shaft Locking Type: Set Screw

• Outer ring with grease groove and holes,at same side of setscrew

• With anti-rotation pin at opposite side of setscrew

• Plastic close cap(CC) or open cap(OC) is available

Material being used for this stainless steel bearing units SUCF2 series:

Mainly Applications:

• Elevator systems
• Food and beverage processing and packaging
• Conveyor systems
• Power transmission
• Construction machinery
• Agricultural machinery
• Packaging systems

MOUETTE also offers plastic housings with bearing inserts made of stainless steel, and pressed steel housed units.

All Stainless Steel Bearing Units SUCF2 Series Specifications:

Notes:

1. Upon request,available with plastic close cap(CC) or open cap(OC) at one end. Ordering example SSUCF204-12 CC.
2. Back seal is available when mounted with SSB inserts.
3. Hand polishing surface housing available upon request. Ordering example SSUCF204-12 HP.
4. Lubricated with food grade grease.
