Brand Name : | MOUETTE |
Model Number : | SL11 922, SL11 936, SL11 914 - Cylindrical Roller Bearing Multi Row |
Certification : | ISO/TS 16949:2009, ISO 9001:2008 |
Price : | USD15 per Piece |
Payment Terms : | L/C, T/T, D/A, Western Union, Paypal |
Supply Ability : | 300,000 Pieces per Month. |
Delivery Time : | 3-50 working days.(Huge Quantity Stocks Available)) |

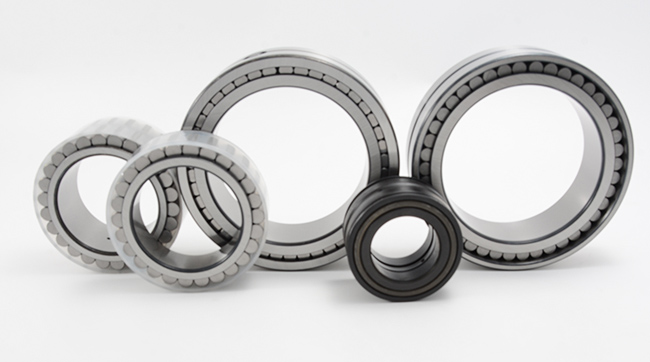

3 Row Full Complement Cylindrical Roller Bearings Metric Locating SL11 922 SL11 936
Full complement cylindrical roller bearings have solid outer and inner rings together with rib-guided cylindrical rollers. Since these bearings have the largest possible number of rolling elements, they have extremely high radial load carrying capacity, high rigidity and are suitable for particularly compact designs. Due to the kinematic conditions, however, they do not achieve the high speeds that are possible when using cylindrical roller bearings with cage.
Product Properties:
Bore | C - Cylindrical Bore |
Seal | No Seal |
Cage Type | FC - Full Complement, No Cage |
External Modification | No External Modification |
Radial Internal Play | Cn Normal Internal Play |
Precision | Standard Precision |
Heat Stabilization | No Heat Stabilization - suitable for operating temperatures from –30 °C to +120 °C |
MOUETTE offers more interchange tables, fag cylindrical roller bearing, nsk cylindrical roller bearings, timken cylindrical roller bearing, ina cylindrical roller bearing.

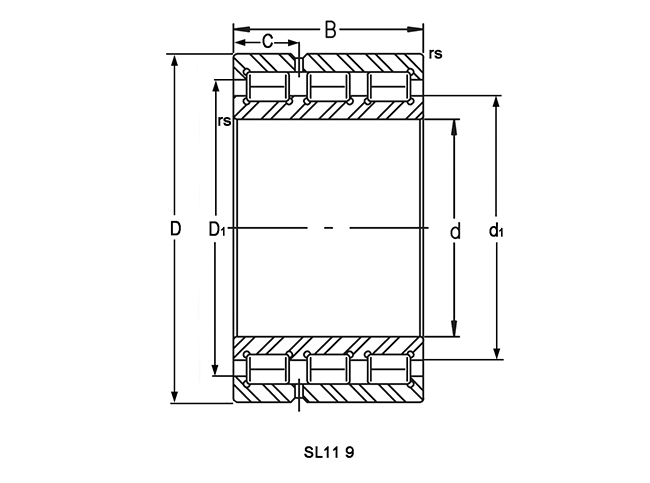

Three-Row Full Complement Cylindrical Roller Bearings Metric Locating SL11 Series Specifications:
Bearing Code | Dimensions | Basic Loading Rating | Limiting speed | Mass | ||||||||
d | D | B | rmin | C | d1 | D1 | Dyn. | Stat. | Limiting speed | Ref. speed | ||
Cr | Cor | nG | nB | |||||||||
mm | KN | rpm | kg | |||||||||
SL11 914 | 70 | 100 | 44 | 1 | 15 | 83 | 87 | 142 | 265 | 3800 | 2800 | 1.15 |
SL11 916 | 80 | 110 | 44 | 1 | 15 | 92 | 96 | 150 | 300 | 3400 | 2500 | 1.29 |
SL11 918 | 90 | 125 | 52 | 1.1 | 17.5 | 103 | 110 | 205 | 425 | 3000 | 2100 | 2 |
SL11 920 | 100 | 140 | 59 | 1.1 | 20 | 116.5 | 124.5 | 260 | 550 | 2700 | 1800 | 2.9 |
SL11 922 | 110 | 150 | 59 | 1.1 | 20 | 125 | 133.5 | 270 | 600 | 2500 | 1600 | 3.15 |
SL11 924 | 120 | 165 | 66 | 1.1 | 22.5 | 139 | 148 | 305 | 660 | 2300 | 1500 | 4.3 |
SL11 926 | 130 | 180 | 73 | 1.5 | 25 | 149.5 | 159.5 | 355 | 770 | 2100 | 1300 | 5.75 |
SL11 928 | 140 | 190 | 73 | 1.5 | 25 | 160 | 170 | 370 | 830 | 2000 | 1300 | 6.1 |
SL11 930 | 150 | 210 | 88 | 2 | 30 | 171.5 | 186.5 | 560 | 1230 | 1800 | 1100 | 9.7 |
SL11 932 | 160 | 220 | 88 | 2 | 30 | 185 | 199.5 | 580 | 1330 | 1700 | 1000 | 10.2 |
SL11 934 | 170 | 230 | 88 | 2 | 30 | 194 | 208.5 | 600 | 1390 | 1600 | 950 | 10.8 |
SL11 936 | 180 | 250 | 101 | 2 | 34.5 | 206 | 223.5 | 780 | 1810 | 1500 | 850 | 15.7 |
SL11 938 | 190 | 260 | 101 | 2 | 34.5 | 216 | 233 | 800 | 1900 | 1400 | 800 | 16.4 |
SL11 940 | 200 | 280 | 116 | 2.1 | 40 | 231 | 251.5 | 940 | 2220 | 1400 | 750 | 22.8 |
![]() |
