    ZSL19 2305 2310 Cylindrical Roller Bearing Gcr15 Single Row Semi Locating

    Ask Lasest Price
    Brand Name : MOUETTE
    Model Number : ZSL19 2305, ZSL19 2310 - Cylindrical Roller Bearing
    Certification : ISO/TS 16949:2009, ISO 9001:2008
    Price : USD15 per Piece
    Payment Terms : L/C, T/T, D/A, Western Union, Paypal
    Supply Ability : 500,000 Pieces per Month.
    Delivery Time : 3-45 working days.
    • Product Details
    • Company Profile

    ZSL19 2305 2310 Cylindrical Roller Bearing Gcr15 Single Row Semi Locating

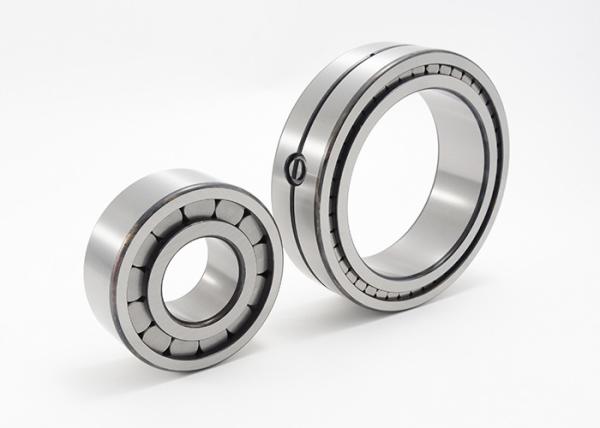

    Semi-Locating Single Row Cylindrical Roller Bearings ZSL19 2305 ZSL19 2310


    Cylindrical roller bearings have a single or multiple row rolling element set based on cylindrical rollers. In contrast to the ball, the roller has a larger contact area perpendicular to the roller axis. As a result, it can transmit higher forces, has greater rigidity and allows smaller rolling element diameters under the same load.
    Depending on the design of the ribs on the bearing rings:
    • axial forces can be supported in one or both directions
    • axial displacements of the shaft relative to the housing are compensated without constraint in the bearing (in bearings with a semi-locating or non-locating bearing function)
    • the bearings can be separated for easier mounting.
    Cylindrical roller bearings are available in various designs, the characteristics of which are optimized for different applications depending on the structure of the bearings: The bearings are available in a single or double row design, with different combinations of ribs on the inner and outer ring, a full complement cylindrical roller set and with various cage designs.

    Features:

    Bore ProfileStraightCage MaterialPolymer
    Precision ClassRBEC 1 | ISO P0Number of Rows of RollersSingle Row
    SeparableInner Ring - One SideRolling ElementCylindrical Rollers
    ProfileComplete with Outer and Inner RingSnap RingNo
    Internal ClearanceC4-Extra LooseRetainerYes, with spacers
    RelubricatableYesInch - MetricMetric
    Other Features1 Rib Inner Ring | 2 Rib Outer RingCategoryCylindrical Roller Bearing

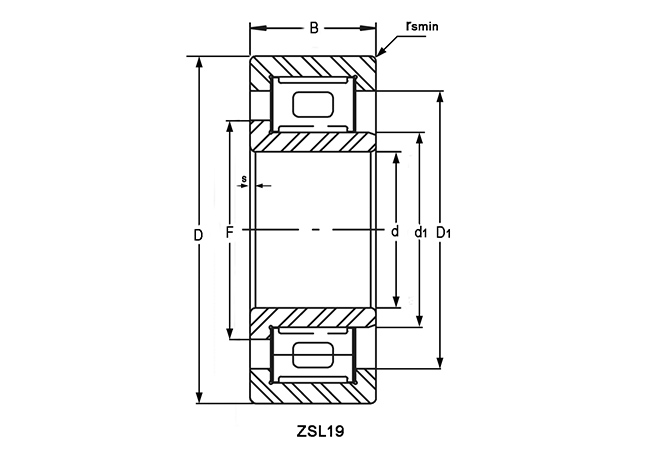

    Semi-Locating Single Row Cylindrical Roller Bearings ZSL Series Specifications:


    Bearing Code

    DimensionsMass

    Basic Load

    Rating

    Limiting speed
    dDBd1D1FrminCrKNCorKN
    mmkgKNrpm
    ZSL19230525622436.747.531.721.10.36685516100
    ZSL19230630722743.55638.31.10.55948113700
    ZSL19230735803150.765.844.681.50.7211810412200
    ZSL19230840903357.575.251.121.5116014410800
    ZSL192309451003662.580.356.11.51.341711609700
    ZSL192310501104068.389.760.7221.762192028800
    ZSL192311551204375.599.367.1122.222552368000
    ZSL192312601304682105.873.622.12.822702607400
    ZSL192313651404890116.580.692.13.443353306800
    ZSL192314701505193.5121.684.142.14.273653656400
    ZSL1923157516055101.6131.991.222.15.24354406000
    ZSL1923168017058109.5142.198.242.16.25105205600
    ZSL1923178518060118.5150.9107.0137.235405705300
    ZSL1923189019064117.5152.5105.2638.75906105000
    ZSL1923199520067126.6161.9114.653106206704750
    ZSL19232010021573132.7172.8119.3312.77507904500
    ZSL19232211024080151.1199.9134.27316.58909003950
    ZSL19232412026086164.2213.1147.39321.9106018103700
