Brand Name : | MOUETTE |
Model Number : | SCH 87, SCH 910, SCH 912, SCH 108, SCH 1012, SCH 1412, SCH 1413, SCH 1416, SCH 1612, SCH 1616, SCH 1812, SCH 1816, SCH 2016, BCH 68, BCH 2020, BHA 88ZOH, BHA 810ZOH, BHA 1112ZOH, BHA 1612, BHA 1816ZOH, BHA 2020ZOH |
Certification : | ISO/TS 16949:2009, ISO 9001:2008 |
Price : | USD0.1 per Piece |
Payment Terms : | L/C, T/T, D/A, Western Union, Paypal |
Supply Ability : | 500,000 Pieces per Month. |
Delivery Time : | 3-45 working days.(Huge Quantity Stocks Available)) |
Drawn Cup Needle Roller Bearing Open Ends Heavy Duty Steel Cage Inch Series SCH1416

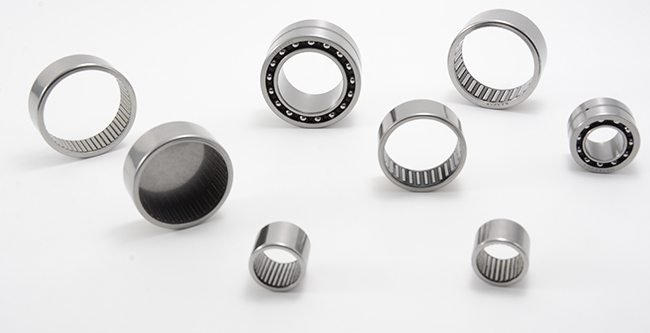

Drawn cup needle roller bearings have a deep drawn, thin-walled outer ring. Drawn cup needle roller bearings are typically used in applications where the housing bore cannot be used as a raceway for a needle roller and cage assembly, but where a very compact and economical bearing arrangement is required. These bearings are mounted with a tight interference fit in the housing. That enables a simple and economic design of the housing bore, as shoulders or snap rings are not required to locate the bearing axially.
MOUETTE supplies a wide assortment of drawn cup needle roller bearings. This includes:
Drawn cup needle roller bearings:

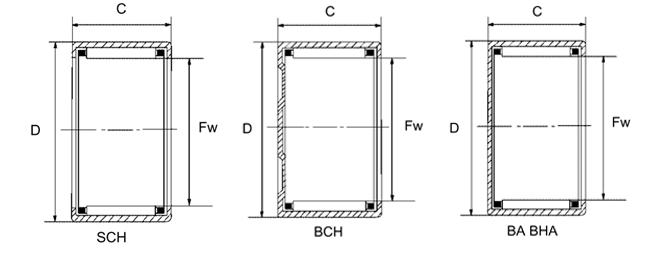

Drawn Cup Needle Roller Bearing Open Ends Heavy Duty Steel Cage Inch Series SCH Details:
Shaft Diameter | Bearing Designation | Mass Approx | Boundary Dimensions | Basic Load Rating | Limiting Speed | ||||
Current Code | Original Code | Fw | D | C | Dynamic | Static | Oil | ||
mm | kg | mm | N | rpm | |||||
12.7 | SCH 87 | 0.009 | 12.7 | 19.05 | 11.13 | ||||
14.29 | SCH 910 | 0.013 | 14.29 | 20.64 | 15.88 | ||||
SCH 912 | 0.017 | 14.29 | 20.64 | 19.05 | |||||
15.875 | SCH 108 | 0.013 | 15.875 | 22.225 | 12.7 | ||||
SCH 1012 | 0.019 | 15.875 | 22.225 | 19.05 | |||||
22.225 | SCH 1412 | 0.032 | 22.225 | 30.162 | 19.05 | ||||
SCH 1413 | 22.225 | 30.162 | 20.64 | ||||||
SCH 1413P | 22.225 | 30.162 | 20.64 | ||||||
SCH 1416PP | 22.225 | 30.162 | 25.4 | ||||||
SCH 1416 | 0.043 | 22.225 | 30.162 | 25.4 | |||||
25.4 | SCH 1612 | 0.036 | 25.4 | 33.338 | 19.05 | ||||
SCH 1614P | 25.4 | 33.338 | 22.22 | ||||||
SCH 1616 | 0.047 | 25.4 | 33.338 | 25.4 | |||||
28.575 | SCH 1812 | 0.048 | 28.575 | 38.1 | 19.05 | ||||
SCH 1816 | 0.063 | 28.575 | 38.1 | 15.4 | |||||
31.75 | SCH 2016 | 0.071 | 31.75 | 41.28 | 25.4 | ||||
34.925 | SCH 2213P | 34.925 | 44.45 | 20.62 | |||||
BCH series | |||||||||
9.525 | BCH 68 | 0.0082 | 9.525 | 15.875 | 12.7 | 500 | 480 | 40000 | |
17.02 | BCH 06604 | 17.02 | 23.83 | 17.53 | |||||
31.75 | BCH 2020 | 0.0815 | 31.75 | 41.275 | 31.75 | 4080 | 7100 | 12000 | |
BHA series | |||||||||
12.7 | BHA 88ZOH | 0.0104 | 12.7 | 19.05 | 12.7 | 620 | 680 | 30000 | |
BHA 810ZOH | 0.0125 | 12.7 | 19.05 | 15.88 | 900 | 1110 | 30000 | ||
17.462 | BHA 1112ZOH | 0.0193 | 17.462 | 23.812 | 19.05 | 1350 | 2020 | 25000 | |
25.4 | BHA 1612 | 0.0335 | 25.4 | 33.338 | 19.05 | 1970 | 3030 | 15000 | |
28.575 | BHA 1816ZOH | 0.06 | 28.575 | 38.1 | 25.4 | 3050 | 4950 | 13000 | |
31.75 | BHA 2020ZOH | 0.0815 | 31.75 | 41.275 | 31.75 | 4080 | 7100 | 12000 |
![]() |
