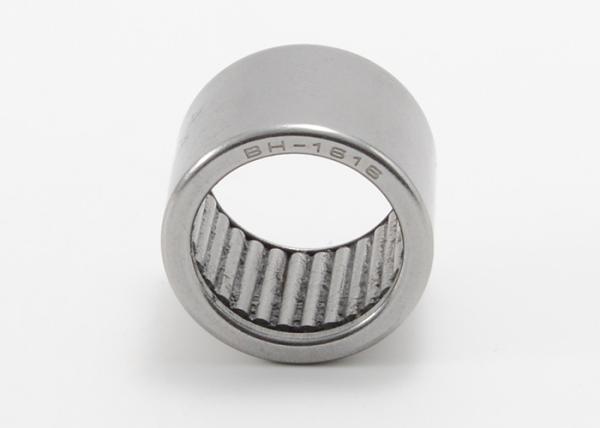

    B 2820 Full Complement Needle Bearing Open Ends Drawn Cup Roller Bearing Needle

    Ask Lasest Price
    Brand Name : MOUETTE
    Model Number : B-208, B-2010, B-2012, B-2020, BH-2016, BH-2020, B-218, B-228, B-2212, B-2216, B-2220, BH-228, BH-2216, BH-2220, B-248, B-2414, B-2420, B-268, B-2812, B-2820, B-2824, B-3012, B-3224, B-3228, B-3416, B-3624, M-20121, MH-2081, M-2281, MH-22161, M-24101
    Certification : ISO/TS 16949:2009, ISO 9001:2008
    Price : USD0.1 per Piece
    Payment Terms : L/C, T/T, D/A, Western Union, Paypal
    Supply Ability : 500,000 Pieces per Month.
    Delivery Time : 3-45 working days.(Huge Quantity Stocks Available))
    • Product Details
    • Company Profile

    B 2820 Full Complement Needle Bearing Open Ends Drawn Cup Roller Bearing Needle

    Full Complement Drawn Cup Needle Roller Bearing With Open Ends B-2820

    Drawn cup needle roller bearings have a deep drawn, thin-walled outer ring. Drawn cup needle roller bearings are typically used in applications where the housing bore cannot be used as a raceway for a needle roller and cage assembly, but where a very compact and economical bearing arrangement is required. These bearings are mounted with a tight interference fit in the housing. That enables a simple and economic design of the housing bore, as shoulders or snap rings are not required to locate the bearing axially.

    About this series:

    • Drawn cup needle roller bearing for applications with high dynamic loads
    • Drawn steel outer shell (cup) has a reduced cross-section for use in restricted spaces
    • Full complement of rollers for higher radial load capacity than caged rollers
    • Through-hardened, high-carbon chromium steel rollers for heat tolerance and durability under heavy loads
    • Meets standard ASTM F2162 for quality assurance

    Full complement drawn cup needle roller bearings are supplied with a special grease to secure the rollers during transport. However, we recommend re-lubricating after mounting.

    MOUETTE offers more interchange tables, such as skf needle bearings, ina needle bearings, ntn needle bearings, iko needle bearings, torrington needle bearings, koyo needle bearings, timken needle bearings, rbc needle bearings, and mcgill needle bearings.

    Full Complement Drawn Cup Needle Roller Bearing Specifications:

    Shaft Dia. Bearing Designation Boundary Dimensions X (max.) Basic Load Rating Limiting Speed Mass
    Open End Closed End Fw D C   Cr Cor Oil open End Closed End
    mm     mm   N rpm kg
    31.750 B-208 M-2081 31.750 38.100 12.70 2.29 18600 36600 3500 0.026 0.029
      B-2010 M-20101 31.750 38.100 15.88 2.29 23900 50700 3500 0.032 0.044
      B-2012 M-20121 31.750 38.100 19.05 2.29 28900 64500 3500 0.039 0.045
      B-2016 M-20161 31.750 38.100 25.40 2.29 38200 92500 3500 0.052 0.059
      B-2020 M-20201 31.750 38.100 31.75 2.29 47200 121000 3500 0.065 0.073
      BH-208 MH-2081 31.750 41.275 12.70 3.05 19700 30000 5000 0.041 0.046
      BH-2012 MH-20121 31.750 41.275 19.05 3.05 33100 58700 5000 0.061 0.069
      BH-2016 MH-20161 31.750 41.275 25.40 3.05 44900 86700 5000 0.081 0.092
      BH-2020 MH-20201 31.750 41.275 31.75 3.05 56000 115000 5000 0.102 0.115
    33.338 B-218 M-2181 33.338 41.275 12.70 2.79 19300 33700 4100 0.034 0.039
      B-2110 M-21101 33.338 41.275 15.88 2.79 25500 48500 4100 0.043 0.049
      B-2120 33.338 41.275 31.75 52500 122000 4100 0.087
    34.925 B-228 M-2281 34.925 41.275 12.70 2.29 19500 40400 3200 0.028 0.032
      B-2212 M-22121 34.925 41.275 19.05 2.29 30400 71200 3200 0.043 0.049
      B-2216 M-22161 34.925 41.275 25.40 2.29 40200 102000 3200 0.057 0.064
      B-2220 M-22201 34.925 41.275 31.75 2.29 49400 133000 3200 0.071 0.080
      BH-228 34.925 44.450 12.70 21200 33500 4700 0.044
      BH-2210 34.925 44.450 15.88 28500 48900 4700 0.055
      BH-2212 MH-22121 34.925 44.450 19.05 3.05 35300 64500 4700 0.066 0.075
      BH-2216 MH-22161 34.925 44.450 25.40 3.05 47600 94800 4700 0.088 0.100
      BH-2220 34.925 44.450 31.75 59600 126000 4700 0.111 0.125
    38.100 B-248 M-2481 38.100 47.625 12.70 3.05 22300 37100 4300 0.048 0.054
      B-2410 M-24101 38.100 47.625 15.88 3.05 29800 53800 4300 0.060 0.068
      B-2412 M-24121 38.100 47.625 19.05 3.05 36900 70700 4300 0.072 0.081
      B-2414 M-24141 38.100 47.625 22.23 3.05 43500 87600 4300 0.083 0.095
      B-2416 M-24161 38.100 47.625 25.40 3.05 49800 103000 4300 0.096 0.108
      B-2420 M-24201 38.100 47.625 31.75 3.05 61800 138000 4300 0.119 0.135
    41.275 B-268 41.275 50.800 12.70 22800 39200 3900 0.051
      B-2610 M-26101 41.275 50.800 15.88 3.05 30600 57400 3900 0.064 0.073
      B-2616 41.275 50.800 25.40 51600 11200 3900 0.103
      B-2620 M-26201 41.275 50.800 31.75 3.05 64000 149000 3900 0.128 0.145
    44.450 B-2812 M-28121 44.450 53.975 19.05 3.05 39300 814000 3700 0.082 0.093
      B-2816 M-28161 44.450 53.975 25.40 3.05 53400 121000 3700 0.110 0.124
      B-2820 44.450 53.975 31.75 66300 160000 3700 0.137
      B-2824 M-26241 44.450 53.975 38.10 3.05 78700 199000 3700 0.165 0.186
    47.625 B-308 M-3081 47.625 57.150 12.70 3.05 25100 46300 3500 0.059 0.066
      B-3010 47.625 57.150 15.89 33600 67600 3500 0.073
      B-3012 47.625 57.150 19.05 41500 88500 3500 0.088
      B-3016 M-30161 47.625 57.150 25.40 3.05 56000 130000 3500 0.117 0.132
    50.800 B-328 M-3281 50.800 60.325 12.70 3.05 25400 48000 3300 0.062 0.070
      B-3210 50.800 60.325 15.88 34200 70700 3300 0.078
      B-3214 50.800 60.325 22.23 54300 115000 3300 0.108
      B-3216 M-32161 50.800 60.325 25.40 3.05 57400 138000 3300 0.124 0.140
      B-3220 M-32201 50.800 60.325 31.75 3.05 71600 183000 3300 0.155 0.175
      B-3224 M-32241 50.800 60.325 38.10 3.05 85000 228000 3300 0.186 0.211
      B-3228 M-32281 50.800 60.325 44.45 3.05 97400 273000 3300 0.217 0.245
    52.388 BH-3312 52.388 64.292 19.05 46300 86700 4100 0.122
      BH-3316 MH-33161 52.388 64.292 25.40 3.56 64000 133000 4100 0.162 0.184
      BH-3324 MH-33241 52.388 64.292 38.10 3.56 97000 226000 4100 0.244 0.276
    53.975 B-348 53.975 63.500 12.70 26100 51200 3100 0.065
      B-3412 53.975 63.500 19.05 43600 99200 3100 0.098
      B-3416 M-34161 53.975 63.500 25.40 3.05 59200 147000 3100 0.131 0.148
      B-3420 53.975 63.500 31.75 73400 194000 3100 0.164
      B-3424 M-34241 53.975 63.500 38.10 3.05 87200 242000 3100 0.196 0.223
    57.150 B-3612 M-36121 57.150 66.675 19.05 3.05 45800 105000 3000 0.103 0.117
      B-3616 57.150 66.675 25.40 62200 155600 3000 0.138
      B-3620 57.150 66.675 31.75 77400 206000 3000 0.172
      B-3624 M-36241 57.150 66.675 38.10 3.30 92100 257000 3000 0.207 0.235
    66.675 B-4216 M-42161 66.675 76.200 25.40 3.30 66700 182000 2500 0.159 0.181
    69.850 B-4410 69.850 79.375 15.88 41000 98000 2500 0.104
      B-4412 69.850 79.375 19.05 50700 129000 2500 0.124
      B-4416 69.850 79.375 25.40 69000 190000 2500 0.166
      B-4420 M-44201 69.850 79.375 31.75 3.30 85400 252000 2500 0.208 0.235
    88.900 B-5612 88.900 101.600 19.05 64900 150000 2700 0.212
    139.700 B-8812 139.700 152.400 19.05 77000 231000 1600 0.325
